• Large array and small pixel uncooled 1280×1024@12um infrared detector used in the infrared camera
• HD color visible light image sensor used in the visual camera with fog penetration function
• Auto identification of human and vehicles, with target recognition accuracy rate ≥90%
• Receive guidance instructions and assist in searching for targets -
• With unexpected power outage information and status backup function
• With under-voltage indication, the battery can work normally regardless of positive or negative connection
• With audio and video synchronization storage function
• Support voice input assistant operation with recognition accuracy ≥95%

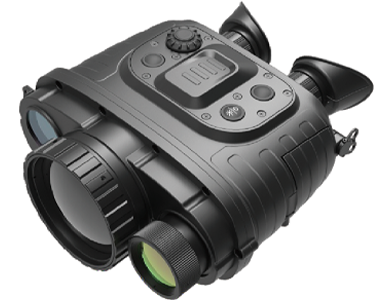

IR5219 uncooled handheld thermal binocular is mainly used to observe targets day and night. It consists of infrared components, visual components, laser ranging components, positioning & orientation components, comprehensive processing components, and display components. In addition to the main part, it also includes some accessories, such as charger, spare battery, connecting cables, carrying bag, operation and maintenance instruction, etc. With this device, an individual is able to conduct long-distance observation day and night to obtain geographical coordinate of his local location. At the same time, by measuring the azimuth angle and distance to the target, the individual can get the geographical coordinate of targets to gain an in-depth understanding of surrounding environments.
| Model | IR5219 |
| Infrared Camera | |
| Detector Type | Uncooled FPA Infrared Detector |
| Pixel Size | 1280×1024/12µm |
| Spectral Response | 8~14µm |
| FOV | ≥8°×6° |
| Visual Camera | |
| Detector Type | HD Color CMOS Sensor |
| Pixel Size | 1/1.8", 400 Mega-pixel |
| FOV | ≥3°×2.2° |
| Image Display | |

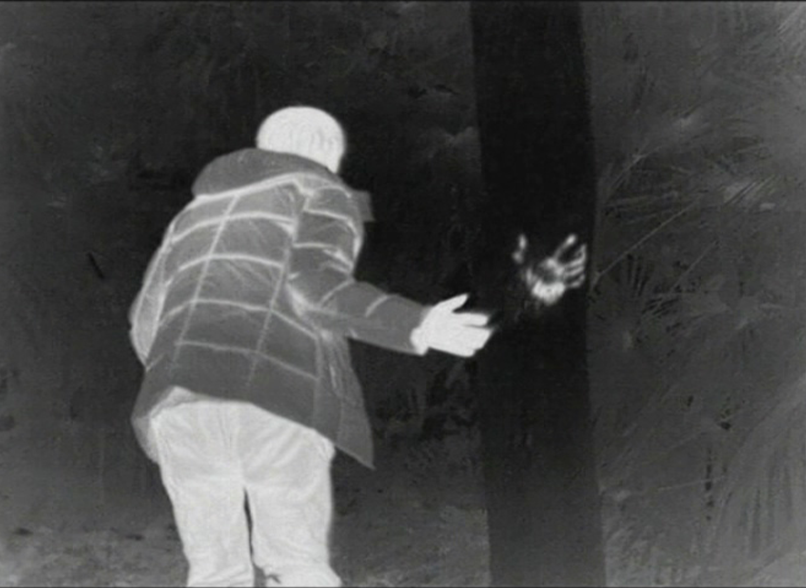

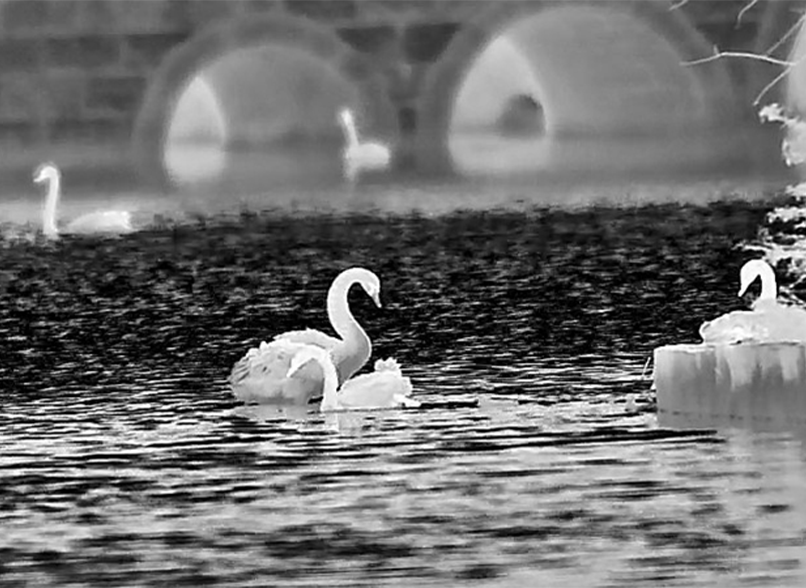

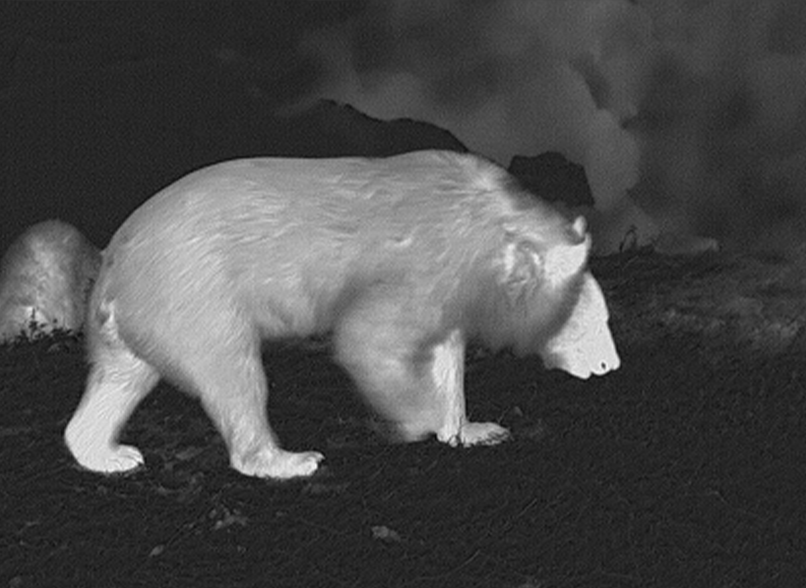

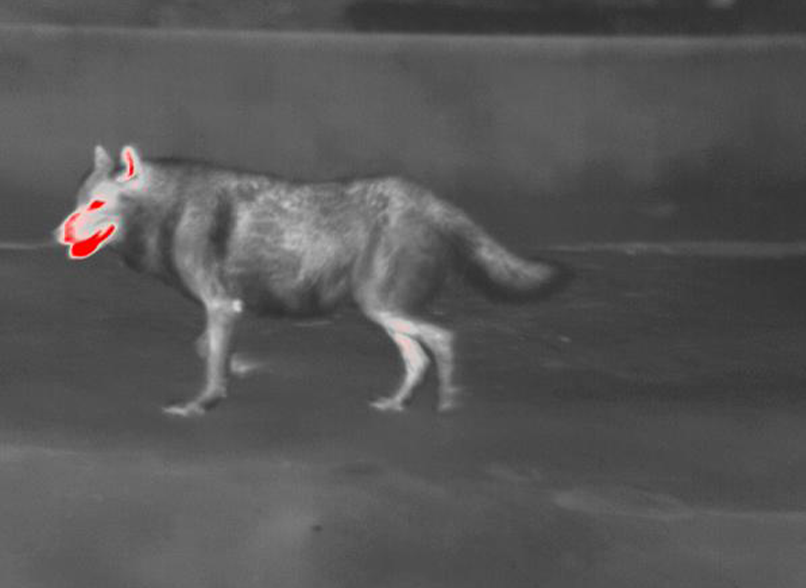

| Thermal Image | White Hot / Black Hot Modes; Brightness & Contrast Adjustment |
| Visual Image | With Fog Penetration Function; Brightness & Contrast Adjustment |
| Zoom | Support Infrared & Visible Light Modes; Infrared Zoom Range: 1.0X~4.0X |
| Laser Ranging | |
| Laser Wavelength | 1.535μm, Eye-safe Band |
| Measuring Range | Min. Range: 50m; Max. Range: ≥9km |
| Ranging Accuracy | ≤2m |
| Accuracy Rate | ≥98% |
| Moving Target Ranging | Distance of moving targets (speed 36~45km/h) on the ground can be measured |
| Power Supply | |
| Battery | 18650 Lithium Batteries (6 pcs) |
| Working Hours | ≥24h (Infrared Energy Saving Mode) |
| Environmental Adaptability | |
| Operating Temperature | -40℃~+55℃ |
| Storage Temperature | -55℃~+70℃ |
| Positioning & Orientation | |
| Azimuth Accuracy | ≤0.5° (Inclination Angle Range -15°～+15°) |
| Self-positioning Accuracy | Horizontal Positioning Error ≤3m (CEP) Elevation Positioning Error ≤5m (PE) |
| Target Positioning Accuracy | When observation distance is 2km, the accuracy ≤10m (CEP) |
| Physical Properties | |
| Net Weight | ≤1.6kg (With Battery) |
| Gross Weight | ≤2.3kg (With Main Part, Spare Battery, Carrying bag)） |
