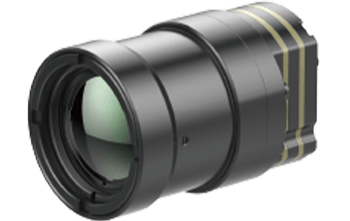

ROCK Series (Shutterless)
Uncooled Infrared Camera Core with Strong Shock Resistance
ROCK Series (Shutterless)
FEATURES
  • Shutterless algorithm, strong shock resistance
    • No shutter correction is required to avoid shutter damage during use
    • Mute operation for good concealment
    • Shock resistance up to 1500g/0.4ms
    • Max envelope diameter≤φ36, weight ≤28.6g (bare module)
  • Powerful features, easy integration
    • Support reticles, storage, network, and keypads
    • Support a variety of video interfaces
    • Support various lenses: manual focus/motorized lens/continuous zoom
    • Support to drive various Micro OLEDs
DESCRIPTION

The ROCK series shutterless infrared camera core delivers exceptional thermal imaging capabilities. It does not require shutter correction during operation and can adapt to 1500g@0.4ms strong shock, solving the interference or noise problems encountered by observers. It allows users to see clearly in complete darkness and through challenging environmental conditions, and captures sharp and detailed images, ensuring accurate identification and target acquisition.

Designed with robust shock resistance technology, ROCK series shutterless infrared camera core remains reliable and functional in various challenging environments such as heavy vibrations and impacts, making it ideal for use in a variety of demanding environments without compromising image quality. This advanced infrared camera core is not only rugged and reliable but also supports extensive secondary development and various video interfaces. It can be seamlessly connected to various devices and systems, making it an ideal choice for various applications.

In order to meet the personalized needs of integrators, ROCK series infrared camera core is equipped with various functions such as reticle, external OLED, keypads and provides various video interfaces and lenses for easy integration. It drives various Micro OLED displays to provide high-quality visual output, enhance user experience and ensure optimal display performance. It excels in detecting and identifying targets even in complete darkness or extreme low-light conditions. This advanced imaging solution delivers exceptional performance across a range of demanding applications. Such a powerful performance infrared camera core truly provides first-class observation experience under limited space and load conditions.

Elevate your thermal imaging capabilities with the ROCK series infrared camera core. Its combination of advanced features, durability, and flexibility for secondary development makes it the perfect choice for professionals seeking a reliable and adaptable thermal imaging solution. Whether for outdoor leisure, surveillance, or research, this infrared camera core is your go-to solution for clear, reliable thermal imaging.


APPLICATIONS
Outdoors

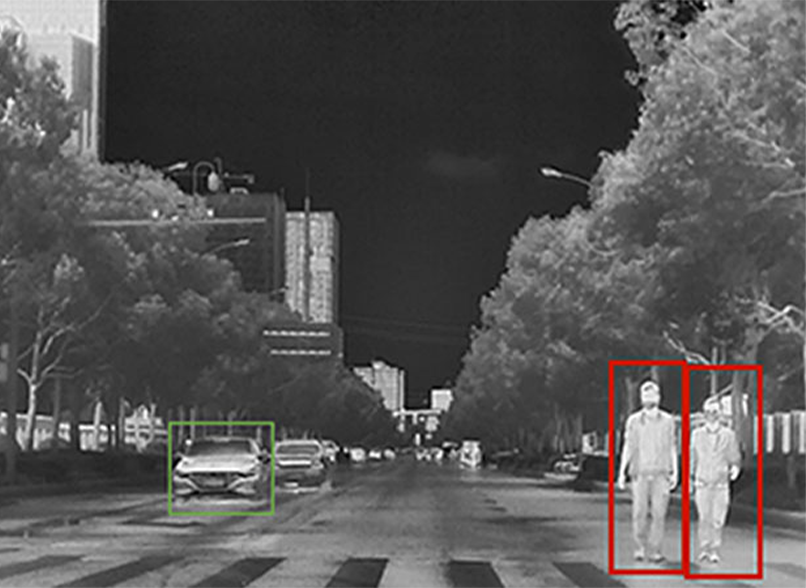

ADAS
UAV Payloads
SPECIFICATIONS
ModelROCKA312ROCKA612ROCKB312ROCKB612
IR Detector384×288/12μm640×512/12μm384×288/12μm640×512/12μm
Spectral Response8~14μm
Typical NETD≤30mK@F1.0/25℃
Analog VideoPAL/NTSC
Digital Video InterfaceDVP8/DVP16/USB2.0/LVDS/BT.656DVP16/USB3.0/MIPI/BT.1120
Frame Rate25/30/50HZ
Image AlgorithmNUC/DRC/DNS/DDE/SFFC
Digital Zoom1x/2x/4x1x/2x/4x/8xThe Reticles Center is Magnified 1x/2x/4xThe Reticles Center is Magnified 1x/2x/4x/8x
Image DirectionHorizontal/Vertical/Diagonal
Cross DivisionSupport
Picture in PictureSupport Upper Left/Upper Middle/Upper Right, and Drawing with Reticles
Photo/Support
Video/Support
Standard External Interface50pin: BP040SB-50-0114-B-R080pin
Communication InterfaceRS232-TTL/USB2.0
Power InterfaceBattery Supply/USB External   Power Supply
Power Consumption0.5W@23±3℃1.5W@23±3℃
Size≤φ36 (Max Envelope Diameter)
Weight≤28.6g≤29.5g
Working Temperature-40℃~+70℃ (Imaging)
OpticsFixed Focus Athermal: 19/25/35/50/70/100mm
Manual Focus: 25/35/50mm
Motorized Lens: 75/100/150mm
Continuous Zoom: 28~90/30~180mm
Extension ComponentsCameralink/HDMI/SDI/MIPI/GigE/USB2.0/USB3.0/VPCWIFI: support 802.11b/g, 2.4Ghz, real-time video transmission and control
Ethernet: support RTSP/HTTP/FTP/CGI
