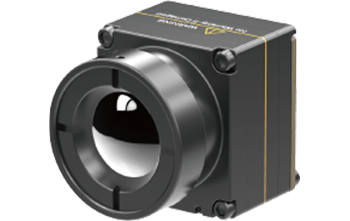

FLEX series is a cutting-edge uncooled LWIR (Long Wave Infrared) thermal camera core with ultra-compact design. It provides a 640x512 resolution and 12μm pixel size for clear and detailed thermal images, enhancing the ability to detect and analyze thermal signatures. As the mainstream 640x512 resolution infrared solution on the market, FLEX series infrared camera cores can be widely used in various applications.

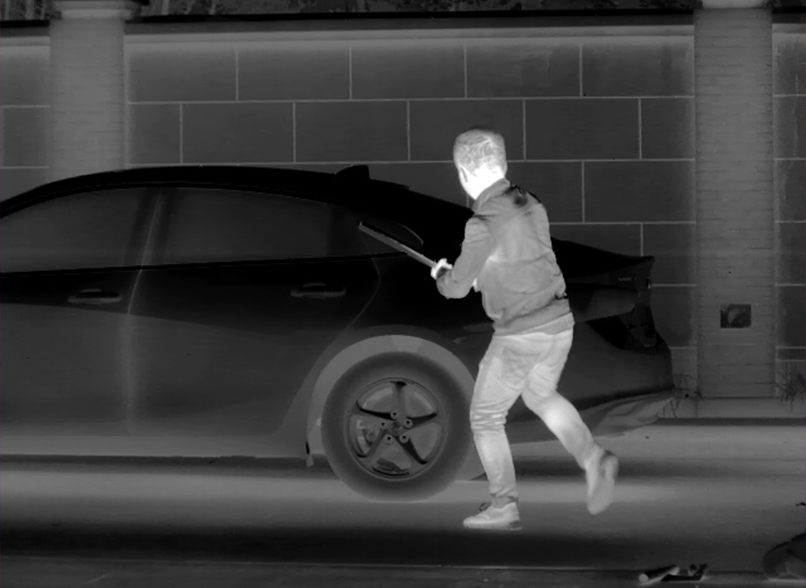

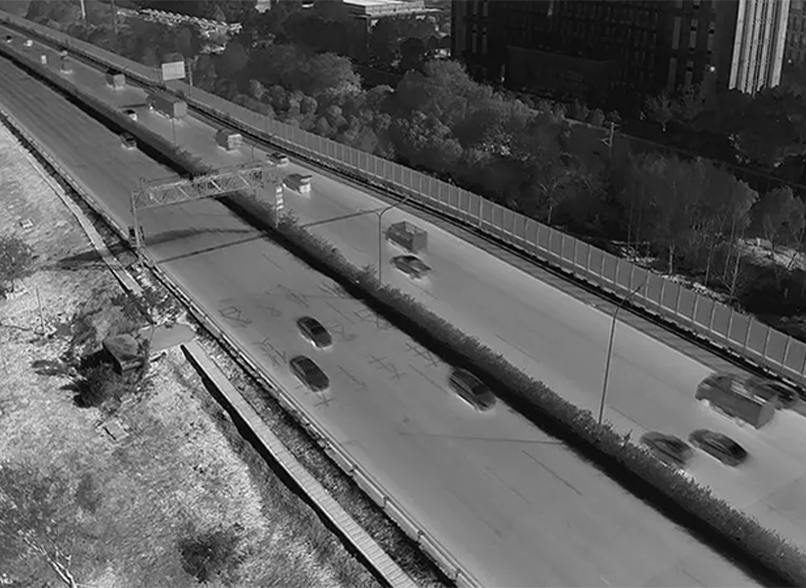

It features both imaging and temperature measurement capabilities, with multiple SDK solutions available for system integration and iterative development to meet the rigorous requirements of compact system loads, providing solutions for more applications such as forest fire detection, security monitoring, and more. Equipped with advanced temperature measurement capabilities, this camera core provides precise thermal data, allowing you to accurately monitor and analyze temperature variations in your target environment. Whether you're monitoring critical infrastructure or detecting potential hotspots in forest regions, the temperature measurement function ensures reliable and actionable information.

Fully oriented for SWaP-C (size-weight-and-power-cost), FLEX series uncooled infrared camera core provides a reliable solution for infrared system integration with limited space. By challenging SWaP limits, FLEXB612 infrared camera core guarantees a compact cross-sectional size of only 17.3mm×17.3mm, and overall weight of merely 13.7g. Its compact structure has reached top level of the same specification module. FLEXB612T infrared camera core responds to space constraints with smaller size and lighter weight, achieves longer battery life with lower power consumption, overcomes integration problems in various applications, and provides more solutions for compact and portable products. It is the best choice for integrators who have restrict requirements on size and weight when integrating their own products.

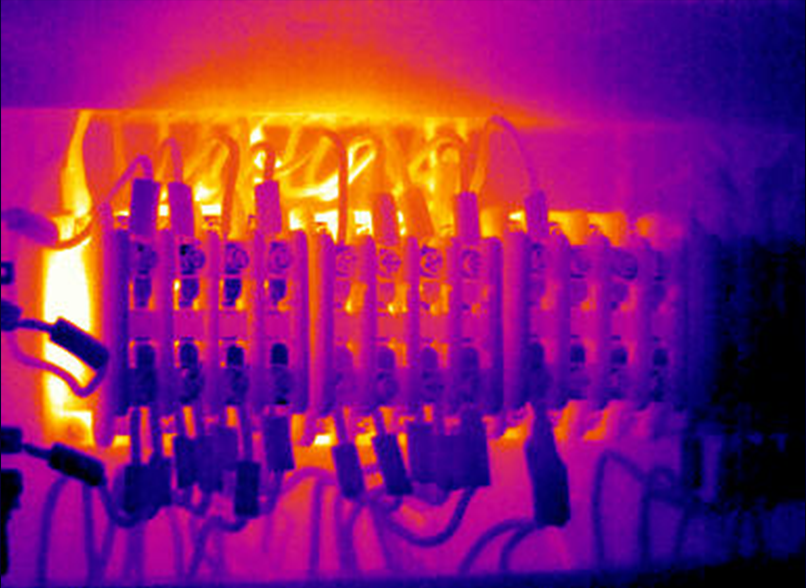

FLEX series uncooled infrared camera core is specially developed for the field of Predictive Maintenance, Photovoltaic Inspection, Environmental Protection, Scientific Research, Aerial Photography, Police Investigation, Disaster Relief & Rescue, Forest Fire Prevention, Urban Safety etc.
