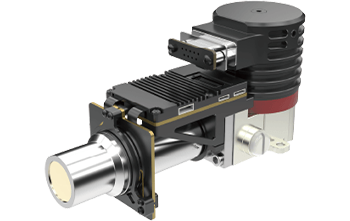

MAC Series (LWIR)
Cooled Long-wave Infrared Camera Core
MAC Series (LWIR)
FEATURES
  • Long wave detection
    • Strong ability to penetrate sand and dust
    • Capable of detecting cryogenic objects
    • Without fear of interference in complex environments, such as sunlight and reflect light in the sea
  • T2SL technology
    • High quantum efficiency, high thermal sensitivity
    • Excellent performance in LWIR
    • Large array, good uniformity, high yield
DESCRIPTION

MAC series LWIR (Long Wave Infrared) cooled infrared camera cores utilize T2SL cooled infrared detectors with resolution from 640x512 to 1280×1024 and integrate various image processing algorithms to output clear infrared images in the total darkness or bad weather conditions. They can detect threats at long distance while present more target details at short distance.

Designed to meet the demands of high-performance applications in challenging environments, the MAC series LWIR infrared camera cores have strong anti-dust and anti-reflective interference ability, suitable for complex background target detection. These benefits make LWIR cooled infrared camera cores an attractive choice for high-end applications in security, scientific research, and more. Developed for effective surveillance and monitoring, the MAC Series LWIR infrared camera cores can detect and recognize risks and threats from considerable distances. This capability is crucial for security applications, border security, search and rescue operations etc. In addition to long-range capabilities, the LWIR infrared camera cores excel in presenting detailed images at closer ranges, making them ideal for industrial inspections and critical analysis of targets.


APPLICATIONS
Handheld Reconnaissance System
Remote Monitoring System
Electro-Optical Payload
SPECIFICATIONS
ModelMAC615CMAC625CMAC1210C
Sensitive MaterialT2SL
Resolution640×512640×5121280×1024
Pixel Size15μm25μm10μm
Spectral ResponseLW 7.7μm±0.2μm~9.4μm±0.3μm
IR Detector NETD (@25±3℃)≤30mK≤25mK≤35mK
Frame Rate50/100Hz100/200Hz50Hz
Image AlgorithmDRC/DNS/3DNR/EE
Analog VideoPAL/NTSC
Digital VideoDVP/LVDS/USB2.0DVP
CommunicationUSB2.0/LV-TTL
Steady Power Consumption (25±3℃)11W18W15W
Working Temperature-40℃~+71℃-40℃~+60℃-40℃~+71℃
Size (mm)≤145×58.5×77≤148×59×81≤148×59×82
Weight≤650g≤730g≤730g
LensFixed Focus: 25mm/F2
Continuous Zoom: 30~300mm/F2
 55mm/F2 Fixed Focus: 45mm/F2
Continuous Zoom: 30~300mm/F2
Extension ComponentsDigital Video: Cameralink/USB3.0/GigE/SDI/MIPI/Single-mode fiber/Multi-mode FiberDigital Video: Cameralink/USB3.0/GigE/HDMI/SDI/MIPI/Single-mode fiber/Multi-mode Fiber
Communication: RS422/CAN/USB3.0/GigE
