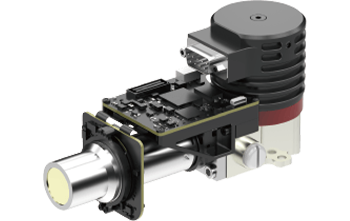

The P series cooled AD modules provides power and control timing to drive the normal operation of the cooling infrared detector, and converts the analog output signal of the cooling infrared detector into a digital video stream output. Equipped with high performance signal processing circuit and standard cameralink interface that could output 16 bits raw data, P series cooled AD modules are applicable to all MCT&T2SL cooled infrared detectors by Guide Infrared.

The P Series modules are available in various resolutions, including 320×256, 640×512, 1280×1024 pixels and pixel size of 30μm, 15μm, 12μm. This versatility allows users to select the resolution that best suits their specific needs, whether prioritizing detail or frame rate. Higher resolutions provide more detailed images, which can be critical in identifying specific thermal signatures.

With P series cooled AD modules, it is easy for OEM customers to carry out fast acceptance test on cooled infrared detectors, start rapid secondary development and shorten their development period to complete products based on cooled infrared detectors.
